Model : KEN5033060K

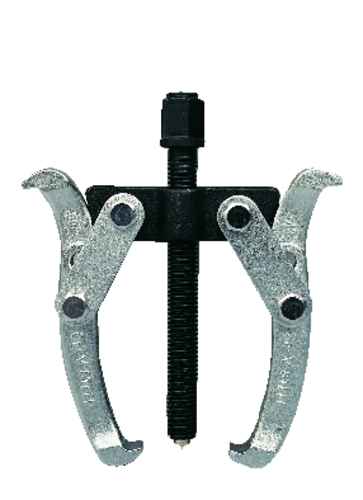

Mechanical Bearing Pullers - 2 Jaw

Industrial reversible / double-ended adjustable pullers.
Used for the removal of gears, ball races, bearings, pulleys and sprockets from a drive shaft.
With reach capacities of 75mm, 100mm, 150mm and 200mm. All sizes have double-ended, adjustable, reversible legs and can be used for internal and external
applications.
Selection: Always use a three jaw puller whenever possible. This produces better load distribution across the jaws and easier and safer removal of the part. Determine what 'spread' is needed - this is the width of the part to be removed. The reach capacity is determined by the depth of the part to be removed.

All pullers can be assembled for internal or external use.
2 Jaw Pullers - Supplied with both 2-legged yoke
2 Jaw -Internal Assembly
2 Jaw -External Assembly

Specification

Property	Value
Brand	Kennedy
EAN13 Barcode	5036140007420
eCl@ss Code	21043090
Overall Depth	47
Overall Length	252
Overall Weight	1.9
Overall Width	215
Product Number	MP2200 [-]
Reach	120 mm
Spread	60 - 150 mm
Supplier Part No.	5033060K
Thread Length	240 mm
UNSPSC Code	27111712

Further Information

Property	Value
Capacity	60 to 150 mm millimetre in. inch
Maximum Diameter	mm millimetre
Product Number	MP2150
Product Type	Puller
Reach	120 mm millimetre
Spread	60 - 150 mm millimetre
Thread Length	240 mm millimetre
To Suit
Weight Each	1.9 kg kilogram
Number of Pieces	1
Includes	Tool Only
Minimum Diameter	mm millimetre
Additional Features	Can be assembled for internal or external use Supplied with 2-legged yoke
Number of Jaws	2
Jaw Reach	120 mm millimetre
