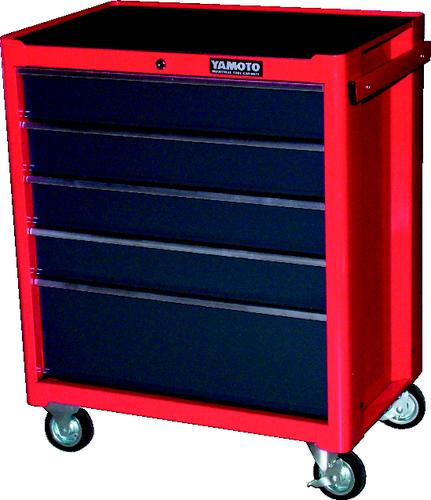

YAMOTO YMT5940540K 5 DRAWER ROLLER CABINET (RED)

  • Model: YMT-594-0540K
  • Shipping Weight: 46.5kg
  • Manufactured by: YAMOTO

RM1,619.70

Sold Out

Model : YAMOTO YMT5940540K 5-DRAWER ROLLER CABINET -RED

Roller Tool Cabinets

Double wall side panels and welded joints for added rigidity. Solid one piece I-beam drawer slides with double sliders on base drawer. Supplied with top mat and drawer liners. Fully locking. 100mm rubber castors, two brakes. Overall dimensions: 850 x 690 x 460mm. Drawer loads should be evenly distributed. Roller cabinets are not suitable for frequent relocation when loaded, and should only ever be pushed.

3 Drawer

Bottom compartment (W x D x H): 610 x 430 x 355mm.

Drawer sizes (W x D x H): 3@ 590 x 410 x 100mm. Uses 16” drawer slides.

5 Drawer

Internal drawer dimensions (W x D x H): 4@ 590 x 410 x 100mm.

1@ 590 x 410 x 200mm. Uses 16” drawer slides.

7 Drawer

Internal drawer dimensions (W x D x H): 4@ 590 x 410 x 50mm. 2@ 590 x 410 x 100mm. 1@ 590 x 410 x 200mm. Uses 16” drawer slides.


Specification :
Property Value
Brand Yamoto
Colour Red [-]
EAN13 Barcode 5036140004405
eCl@ss Code 21100490
Number of Drawers 5 [#]
Overall Depth 460 mm
Overall Height 850 mm
Overall Width 690 mm
Supplier Part No. YMT-594-0540K
UNSPSC Code 24112401
Weight 46.5 kg

Further Information :
Property Value
Colour Red/Grey
Design Double Wall Construction Side Panels; Welded Joints For Extra Rigidity
Drawer Dimensions (1) 590 x 410 x 200mm; (4) 590 x 410 x 100mm
Drawer Load Capacity 590 x 410 x 100mm - 15; 590 x 410 x 200mm - 20 kg
Drawers 16" Drawer Slider (Single); (4) x 16" Drawer Sliders Fitted To The Base Drawer; I-Beam Draw Slides; Universal Drawer Liners
MFR Part No. TB209B
Mobility Cabinets Should Only Ever Be Pushed Using The Side Handle Bar; Roller Cabinets When Loaded Are Not Suitable For Frequent Relocation; Set of 4 (2) 100mm Ø Casters with Brakes (2) 100mm Ø Casters without Brakes; Side Handle To Fit Roller Cabinets
Number of Drawers 5
Product Dimensions in mm Depth 460mm; Height 850mm; Width 690mm
Product Range Trade Range
Product Type Roller Cabinet
Replacement Spares To Suit This Product 16" Drawer Slider (Single); 180° Deg Lock; Key Blank; Rubber Top Mat; (Set-4) Castors (2 x With Brakes) (2 x Without Brakes) 4" x 1.1/8"; Universal Drawer Liner: 583mm x 405mm
Security Fully Lockable
Weight 46.5 kg
