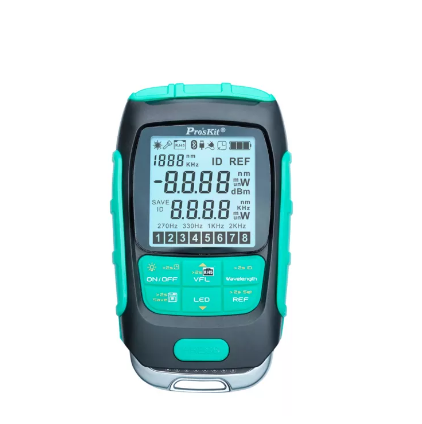

Model : Pro'sKit MT-7615 (15mW) 4 in 1 fiber Optical Power Multimeter

Features :

• Pro'sKit MT-7615 4 in 1 fiber Optical Power Multimeter (15mW Power Output)
• Detector Type: InGaAs
• Wavelength Range: 700-1700nm
• Optical Connector: 2.5mm Universal
• Measuring Wavelength: 850/980/1300/1310/1490/1550/1625/1650nm
• Measuring Range: -70~+10dB
• Accuracy: (1550,1310nm) ±0.2dB / (1490nm, 1625nm) ±0.3dB / (850nm, 980nm, 1300nm) ±0.4dB
• Power Display Units: dB, dBm, mW, uW, nW
• Modulation Detection: 270/ 1k/2kHz
• Data Storage: 500
• Wavelength Memory: Yes
• Wavelength ID: Yes (Only work for Pro'sKit Products)
• Self Calibration: Yes
• REF Value: Yes
• Backlight: Yes
• Output Power: 15mW
• VFL Test Length: 10-12km @Single Mode
• VFL Connector: 2.5mm Universal
• VFL Wavelength: 650±20nm
• VFL Laser Mode: Continuous / Flashing
• LAN Cable: UTP Cable
• LAN Cable Connector: RJ45 (UTP / 8P8C)
• Cable Mapping: Yes
• Measuring Length: 600m
• Assistive Light: LED
• Auto Power Off: Yes (10 mins)
• Low Battery Indication: Yes
• Charging Port: Micro USB
• Working Hours: >50hrs (Power Meter Only)
• Battery: 3.7V / 450mAh, Li-ion
• Working Environment: -10~50C, <90%RH
• Dimension: 98 x 59 x 27mm
• Weight: 100g
