PRO'SKIT TE-8202F-W FIBER OPTIC FUSION SPLICING MACHINE KIT

  • Model: TE-8202F-W
  • Shipping Weight: 2.5kg
  • Manufactured by: PRO'SKIT

RM15,300.00

Sold Out

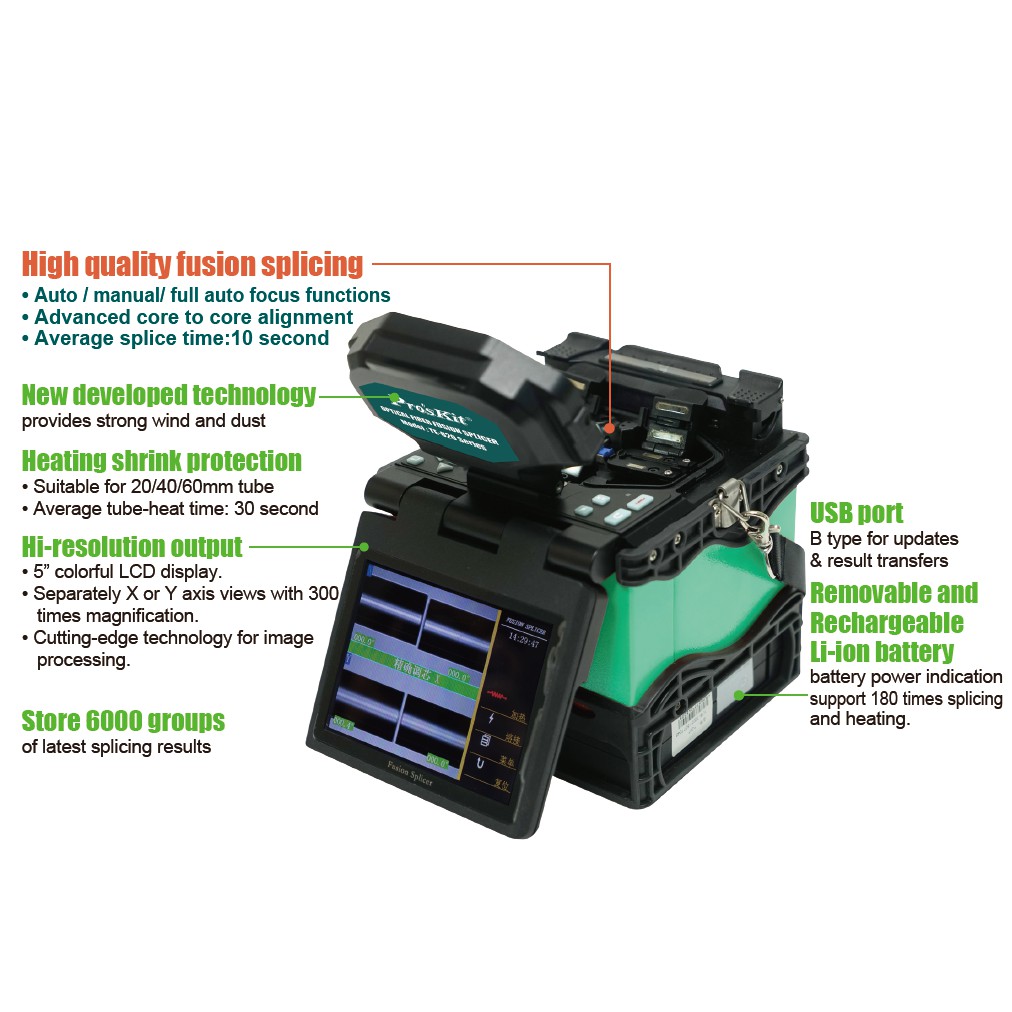

The splicing machine is a new fully-digital design with 5" LCD colorful display, provides the latest core to core alignment technology.

  • High quality fusion splicing
  • Auto/manual/full auto focus functions
  • Advanced core to core alignment
  • Average splice time: 10 seconds
  • Heat shrink protection
  • Suitable for 20/40/60mm (0.8/1.6/2.4") tubes
  • Average tube-heat time: 30 seconds
  • Hi-resolution output 5" colorful LCD display
  • Separately X or Y axis views with 300 times magnification
  • Cutting-edge technology for image processing
  • Store 6000 groups of latest splicing results
  • USB port B-type for updates and result transfers
  • Removable and Rechargeable Li-ion battery with indicator will provide 180 times splicing and heating



  • Model No. TE-8202A
  • Applicable Fibers SM, MM, NZDS, EDF
  • Average Splice Loss 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
  • Splice Time (sec.) 10 sec. (for SM fiber)
  • Return Loss =60dB
  • Diameter of fiber optic Cladding diameter:80-150µm , Coating diameter:100-1000µm
  • Tension Test 2.0N(200gf)(Standard)
  • Splicing Program 50 groups
  • Heat Shrinkable Tube 20mm, 40mm, 60mm
  • Memory Capacity 6000 memories
  • Battery low indication 4pcs led light indication
  • Environmental Conditions -10~+50°C (operation temperature),0~95% RH(humidity), 0~5000m(altitude)
  • Standard Package Fusion splicing machine, Fiber cleaver, Fiber stripper, Leak proof dispenser,
  • AC adaptor, Battery(in the machine), Spare electrodes, 60mm Shrinkable tube 25pcs,
  • Cooling tray, Quick reference guide, Carrying case with carrying strap
  • Power Supply AC adaptor: 100~240V input voltage, 50/60Hz; 15V, 4A
  • Standard plug A type
  • Battery 12V 5.2AH
  • Dimensions 5.1 x 5.3 x 5.1 inches
  • Weight 5.5 lbs (battery included)

This product was added to our catalog on Wednesday 09 October, 2019.
