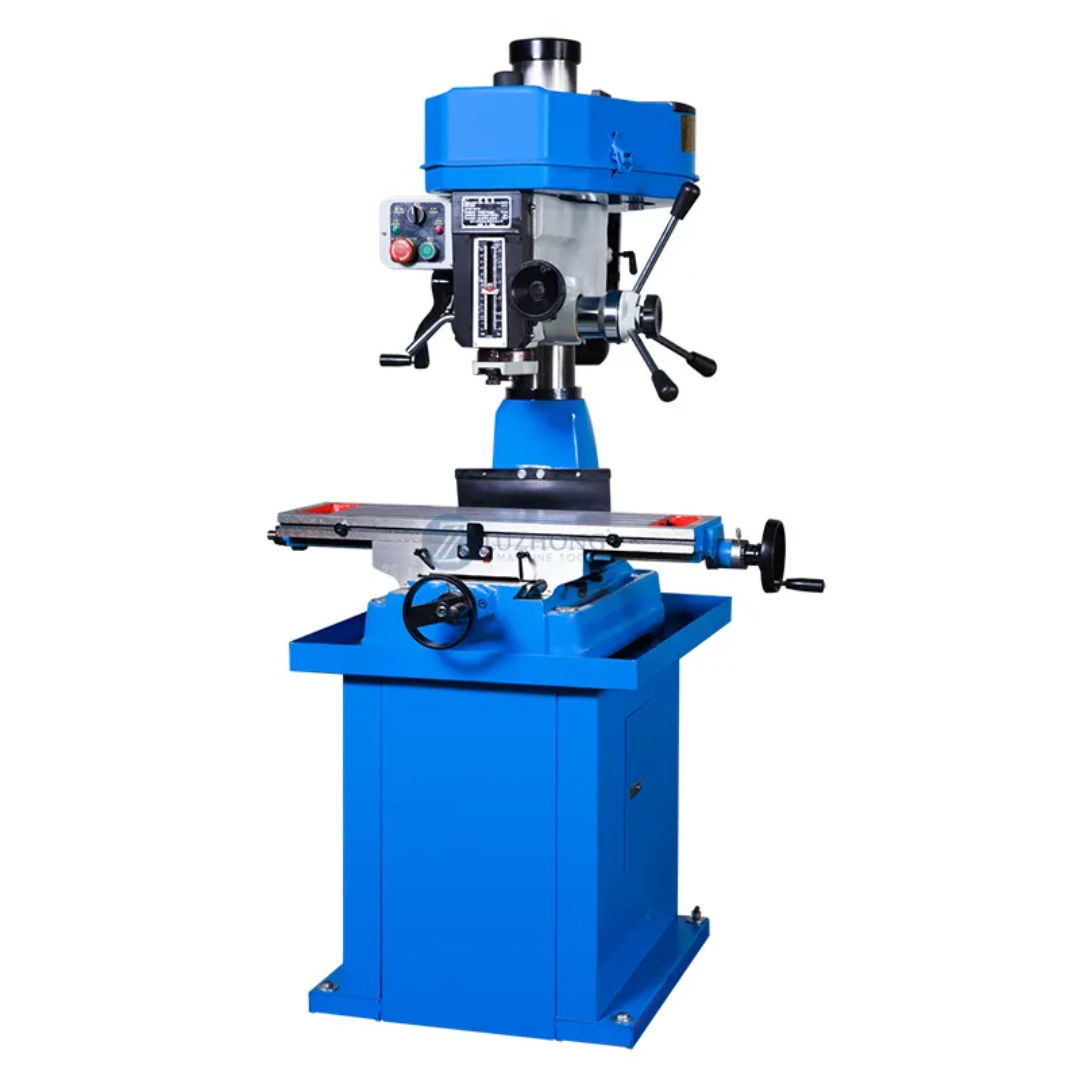

West Ling ZX-7032 Milling & Drilling Machine 1.5kw 415v 3 Phase

  • Model: ZX-7032
  • Shipping Weight: 300kg
  • Manufactured by: XEST LING

RM7,120.00

Add to Cart:

Features

  • Gear shift, friendly operation
  • Wide range of speed adjustment
  • Gear driven, gear quench high carrying capacity great torsional moment
  • Head rotation is operated with bracket. Will be much more precise while bevelling a hole.
  • High gear precision, low noise

Specifications

Max. Drilling Capacity 31.5mm
Max. Face Mill Capacity 80mm
Diameter of Vertical Milling 22mm
Spindle Travel 130mm
Distance Spindle Axis to Column Generating Line 202mm
Max. Distance Spindle Nose Totable 460mm
Spindle Taper MT3
Spindle Speeds Range 100~2150 rpm
Spindle Speeds Series 12
Dimension of Worktable Surface 730mm x 210mm
Table Travel 450mm x 170mm
Overal Height 1100mm
Motor Output 1500 Watts
Voltage 380~415V Three Phase
Weight 280 kg
Packing Dimensions (L x W x H) 860mm x 740mm x 1160mm

Accessories Included

  • Drill chuck
  • Arbor
  • Wrench
