Jonnesway JAI-1044K TOOL SET 1/2 "DR 780NM PNEUMATIC WRENCH

  • Model: JAI-1044K
  • Shipping Weight: 2.6kg
  • Manufactured by: JONNESWAY

RM1,295.95

Add to Cart:

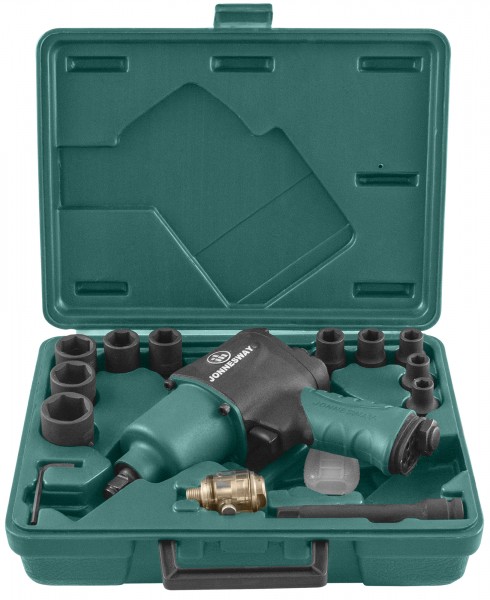

Model : JAI-1044K TOOL SET 1/2 "DR 780NM PNEUMATIC WRENCH AND 9-27MM IMPACT HEADS, 17 ITEMS

JONNESWAY pneumatic impact wrench with a set of accessories, a light alloy, metal body, covered with a special, impact-resistant enamel, applied in an electrostatic manner. The rubber-rubber grip of the JONNESWAY JAI-1044K wrench handle reduces vibration effects on the operator's hand. Wrench JONNESWAY JAI-1044 is used to service complicated and loaded connections with thread sizes up to M16 and a maximum torque of 780 Nm. When performing work using JONNESWAY pneumatic impact wrenches, the use of gloves with vibration damping pads and eye and hearing protection is recommended.

CONTENTS OF THE KIT JONNESWAY JAI-1044K :
Pneumatic wrench JONNESWAY JAI-1044, 1/2 "DR, 8000 rpm, 780 Nm.
Face drums 1/2" DR CR-MO 10 pcs. 9, 10, 11, 13, 14, 17, 19, 22, 24, 27 mm.
Extension stroke 1/2 "DR CR-MO 125 mm.
Lubricator terminal 1/4" DR PT
Nozzle 1/4 "DR PT
lubricator
Screwdriver angle (Allen key) TORX® T27
plastic case.

CHARACTERISTICS JONNESWAY JAI-1044K
Connection box (inch ) 1/2
Frequency of free rotation (r / min.) 8000
Torque Max. (N / m.) 780
Torque working (N / m.) 650
Line pressure Mach. (Kgf / cm².) 6.2
Cyclic air flow rate (l / min.) 119
Diameter of air hose (mm) 10
Connection (inch) 1/4
Size (mm length.) 195
Weight (kg.) 2.6
Drive mechanism Double hammer
Noise level (db.) 90
Vibration (m / s2) 3.6

This product was added to our catalog on Friday 19 October, 2018.
