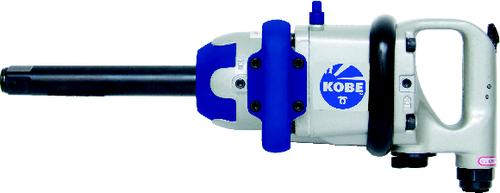

KOBE KBE2701630B 1" DRIVE H/D IN-LINE IMPACT WRENCH

  • Model: KBE-270-1630B
  • Shipping Weight: 14.5kg
  • Manufactured by: KOBE TOOLS

RM3,667.00  RM2,744.00
Save: 25% off

Add to Cart:

KOBE KBE2701630B

IWS100X - 1" Heavy-Duty In-Line Air Impact Wrench

IWS100X - 1" square drive. Suitable for industrial and commercial production and assembly applications. Side handle for two-handed operation. Top mounted spring balance loop. Easy to use forward/reverse switch and three position power regulator. Top venting exhaust. Oiling points for daily maintenance.

Bolt Capacity: M33
Working torque: 2,030 Nm
Maximum torque: 2,300Nm
Safe working pressure: 6.2bar / 90psi.
Air inlet thread: 1/2" NPT.
Minimum air hose size (ID): 1/2" (13mm).
Air pressure: 6.3bar/90 psi.
Air consumption: 7.0 cfm.
Sound pressure level: 96 dBA.
Vibration level: 5.9 m/s².
Overall length: 500 mm

Specification

Property Value
Brand Kobe­ Blue Line
EAN13 Barcode 5036140045668
Free Speed 3300 rpm
Overall Depth 225
Overall Length 720
Overall Weight 12.6
Overall Width 385
Supplier Part No. 2701630B
UNSPSC Code 27131501
Weight Each 14.5 kg

Further Information

Property Value
Blows per Minute N/A bpm blows per minute
Maximum Torque (rev) 2,305 Nm Newton metre
Model Number IWS100X
No Load Speed 3,300 rpm revolutions per minute
Overall Height mm millimetre in. inch
Overall Length 500 mm millimetre
Overall Width mm millimetre
Torque Range (fwd) - 2,034 Nm Newton metre
Weight 9.34 kg kilogram
Air Inlet Size 1/2 NPT
Square Drive Size 1 in. inch
Minimum Compatible Hose Size (1/2"
) 13 mm millimetre
Noise/ Vibration Information Sound Power 101.67 dB
Sound Pressure 96 db(A)
Vibration 6.0 m/s² ISO-8662-7
Actual Air Consumption 7.0 CFM
Average Air Consumption

This product was added to our catalog on Monday 02 August, 2010.
