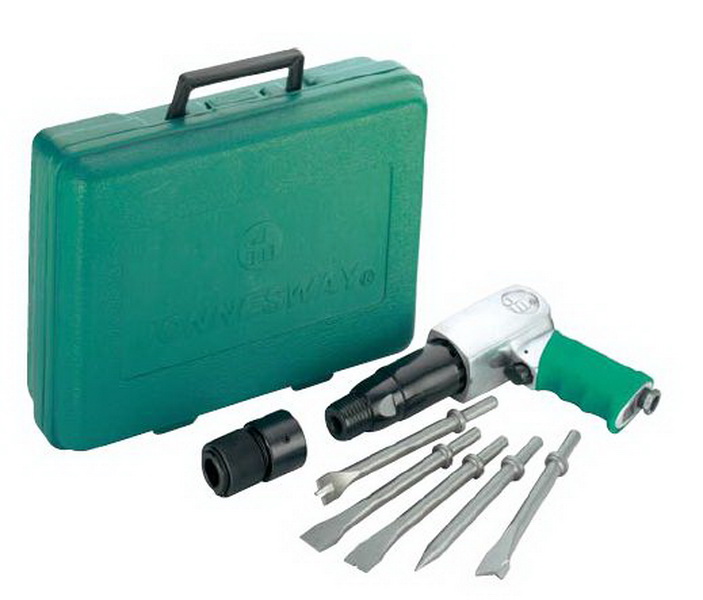

Model : Jonnesway JAH-6833HK 8pcs 250mm Air Hammer Kit ( hex )

Attach the necessary tooling to the tool holder (recommended attachments of the JONNESWAY®JAZ series). Do not connect the tool to the air line before installing the tooling in the chuck. The start button, located at the top of the handle, allows you to turn the tool on and off and does not have a fixed on position. In no case do not include the tool in a free position, it is dangerous. Starting work should be done only by putting the nozzle into the workpiece.
When working, it is necessary to use respiratory protection of sight and hearing, and to reduce the effects of vibration on the hands, gloves with a vibration-damping effect.
At the end of the work, shut off the pressure in the line, remove the rigging, disconnect the instrument from the hose, clean the instrument from contamination, lubricate the parts of the instrument through the air supply nozzle.

CHARACTERISTICS JAH6833
Shank used nozzles (mm.) 12
Cylinder diameter (mm.) 19.05
Cyclicity (c / min) 2100
Stroke (mm) 92
Line pressure Mach. (atm.) 6.2
Air consumption (l / min.) 283
Diameter of the air hose (mm) 10
Connection (inch) 1/4
Size (length mm.) 225
Weight (kg.) 2.04
