PROSKT Optical Time Domain Reflectometer MT-7610F

  • Model: MT-7610F
  • Shipping Weight: 0.6kg
  • Manufactured by: PRO'SKIT

RM7,983.40

Add to Cart:

Model : Proskit 5MT-7601-LC Fiber Optical Power Meter LC Adaptor

Description

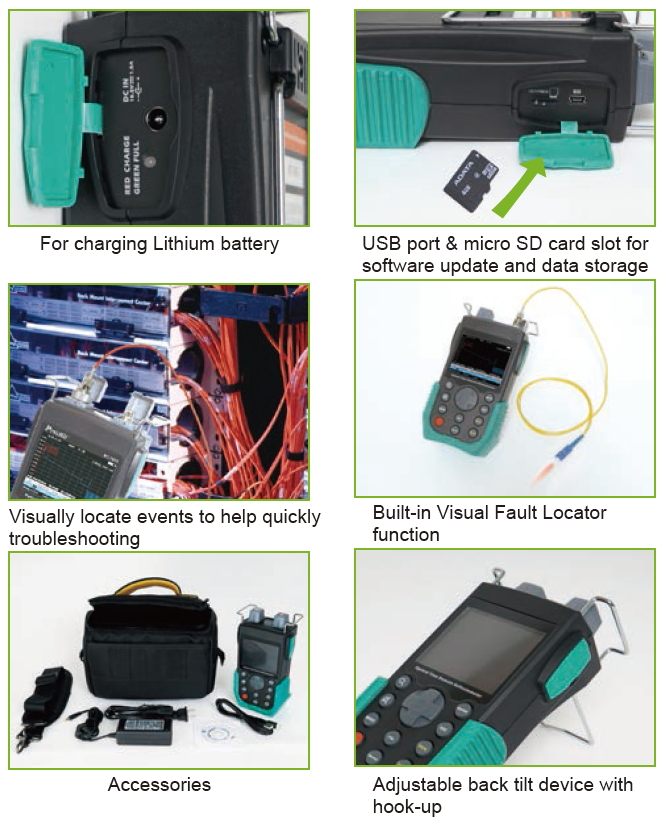

MT-7610 is an advanced diagnostic tool for optical fibers to help engineers quickly troubleshoot problems, allowing them to visually locate reflective events like connections and fiber breaks and non-reflective events like splices and tight bends by studying the graphical trace.



Automatic one-button testing, wavelength support 1310, 1550nm.

  • Palm design, small, lightweight, easy to carry.
  • High contrast 3.5 inch color TFT LCD.
  • Detect short dead zone event accurately .
  • High speed signal processing, short test time and fast analysis.
  • USB port connect to PC for software update and data output.
  • User-friendly OTDR simulation software shows details of events.
  • Built-in visual fault locator function.
  • Comes with rechargeable lithium polymer battery, support max 8 working hours.



Model no. MT-7610F
Voltage 220~240V
Optical fiber type SM optical fiber
Dynamic range 24dB(1310nm) / 22dB(1550nm)
Wavelength 1310nm±20nm, 1550nm±20nm
Fiber optic connector SC/PC (FC/PC,ST/PC Optional)
Display 3.5 inch color LCD
Display resolution 320x240
Measuring distance (km) 0.37~80
Distance uncertainty (m) ±(0.8+0.005%*distance+Sampling resolution)
Pulse width 10ns~10us
Measurement time 5s~180s
Attenuation blind area 15m(@minimum plus width)
Event blind area 3m(@minimum plus width)
Loss threshold (db) 0.05dB
Loss resolution (db) 0.01dB
Sampling resolution (m) 0.4 to 1.6
Sampling points Up to 70866
Typical real-time refresh (hz) 2
Data storage 4GB micro SD card included, support 16GB, 25000records
Communication connector Mini USB
VFL power 1mW(650nm±10nm)
Power source Rechargeable lithium polymer battery 7.4v 3100mAh
Battery working time standby>15hours, continuous measuring>8 hours
Adaptor Input AC 100~240 50/60Hz; Output: DC10.5V/1.9A
Auto power off Y
Low battery warning Indication for low battery energy
Operation voice prompts N
Back light Y
Operation temperature 0~+50°C; <90%RH
Storage temperature -20~+70°C; <90%RH
Size 195mm×110mm×60mm
Weight 600g
Plug F



This product was added to our catalog on Monday 24 June, 2019.
