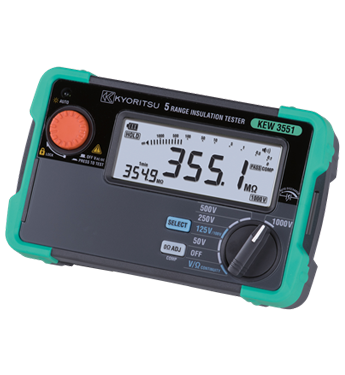

KYORITSU KE 3551 Insulation / Continuity Testers

  • Model: KE 3551
  • Shipping Weight: 0.49kg
  • Manufactured by: KYORITSU

RM3,490.00

Add to Cart:

Model : KYORITSU KE 3551 Insulation / Continuity Testers

Features :

- World’s fastest measurement speed (0.5 sec.)
- Six ranges available for insulation
 resistance test (50/100/125/250/500/1000 V)

KEW3551 : Standard model

KEW3552 : With memory function

KEW3552BT : With memory and Bluetooth communication functions



Insulation resistance

Test voltage 50V/100V/125V/250V/500V/1000V
Measuring range<br>(Auto range) 100.0MΩ 50V
200.0MΩ 100V
250.0MΩ 125V
500.0MΩ 250V
2000MΩ 500V
4000MΩ 1000V
Mid-scale value 2MΩ 50V
5MΩ 100V/125V
10MΩ 250V
100MΩ 500V
200MΩ 1000V
First effective measuring range 0.100  10.00MΩ 50V
0.100  20.00MΩ 100V
0.100  25.00MΩ 125V
0.100  50.0MΩ 250V
0.100  500MΩ 500V
0.100  1000MΩ 1000V
Accuracy ±2%rdg ±2dgt
Second effective measuring ranges 0.050 ~ 0.099MΩ 50V/100V/125V/250V/500V/1000V
10.01 ~ 100.0MΩ 50V
20.01 ~ 200.0MΩ 100V
25.01 ~ 250.0MΩ 125V
50.1 ~ 500MΩ 250V
501 ~ 2000MΩ 500V?
1001 ~ 4000MΩ 1000V
Accuracy ±5%rdg (0.050 ~ 0.099MΩ: ±2%rdg±4dgt)
Rated current 1.0 ~ 1.1mA
Output short circuit current 1.5mA max



Ω / Continuty

Auto range 40.00/400.0/4000Ω
Accuracy ±2.5%rdg ±8dgt
Output voltage on open circuit 5V?4~6.9V
Output short circuit current 200mA max

Voltage

Voltage range AC 2.0~600V 45~65Hz
DC -2.0~-600V +2.0~+600V
Accuracy ±1%rdg ±4dgt

General

Applicable standards IEC61010 CAT? 600V/CAT IV 300V
IEC61557-1,2,4 IEC61326-1,-2-2 IEC60529 IP40
Power source LR6/R6 AA 1.5V x4
Dimensions / Weight 97(L) x 156(W) x 46(D) mm / 490g approx including battery
Included Accessories 7260 Test leads with remote control switch
7261A Test leads with alligator clip
8017A Extension prod long
9173 Carrying case
9121 Shoulder strap
LR6 AA  1.5Vx4
Instruction manual
Optional Accessories 7243A L-shaped probe
8016 Hook type prod
