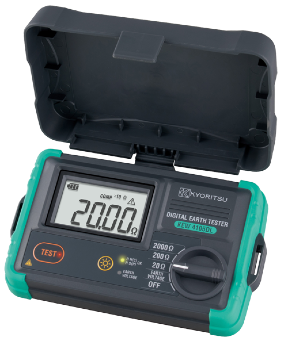

Kyoritsu 4105DL Earth Tester

  • Model: KE 4105DL
  • Shipping Weight: 0.55kg
  • Manufactured by: KYORITSU

RM3,190.00

Add to Cart:

Model : Kyoritsu 4105DL Earth Tester

4105DL [Cable Reel Set Model]
4105DL-H [Hard Case Model]

  • 3pole and 2pole Earth Resistance measurement (0.01Ω-2000Ω)
  • Waterproof design (IP67)
  • Rotary Switch makes the user interface very intuitive
  • Large LCD Display with Backlight
  • Led to monitor correct / non correct auxiliary earth spike resistance
  • Earth Voltage Measurement (AC/DC 0-300V)
  • CAT ? 100V
Earth resistance
measurement		 20Ω 200Ω 2000Ω
  Measuring range 0.00 – 2000 Ω
Display range 0.00 – 20.99 Ω 0.0 – 209.9 Ω 0 – 2099 Ω
Accuracy*1 ±1.5%rdg±0.08 Ω*2 ±1.5%rdg±4dgt
Auxiliary earth resistance*3 <10kΩ  <50kΩ  <100kΩ
Comparator reference value 10Ω  100Ω  500Ω




Earth voltage measurement
  Measuring range 0 – 300 V AC (45 – 65Hz) ±0 – ±300 V DC
Display range 0.0 – 314.9 V 0.0 – ±314.9 V
Accuracy ±1%rdg±4dgt
Overload protection Earth resistance : 360V AC (10 seconds)
Earth voltage : 360V AC (10 seconds)
Applicable Standards IEC 61010-1, CAT IV 100 V /CAT III 150 V /CAT II 300 V Pollution degree 3
IEC 61010-2-030,IEC 61010-031, IEC 61557-1, -5
IEC 60529 IP67, IEC 61326-1, -2-2, EN50581(RoHS)
Power source LR6(AA)(1.5V) × 6
Dimensions 121(L) × 188(W) × 59(H) mm (including case lid)
Weight Approx. 690g (including batteries and case lid)
Accessories
for 4105DL		 7127B(Simplified measurement probe)
8041(Auxiliary earth spikes[2 spikes/1set])
9121(Shoulder strap)
7267(Cable reel for Earth resistance tester (red))
7268(Cable reel for Earth resistance tester (yellow))
7271(Earth resistance test leads)
9190(Carrying case)
LR6(AA) × 6, Instruction manual
Accessories
for 4105DL-H		 7127B(Simplified measurement probe)
8041(Auxiliary earth spikes[2 spikes/1set])
9121(Shoulder strap)
7266(Earth resistance test leads[red-20m, yellow-10m, green-5m/1set])
9191(Hard case)
LR6(AA) × 6, Instruction manual
Optional 7272(Precision measurement Cord set)
8259(Adapter for measurement terminal)



*1 For precision measurement, auxiliary earth resistance should be 100 Ω ±5% or less.
*2 At simplified measurement add ±0.10 Ω to the specified accuracy.
*3 Accuracy within the auxiliary earth resistance: ±5% rdg ±10 dgt.
