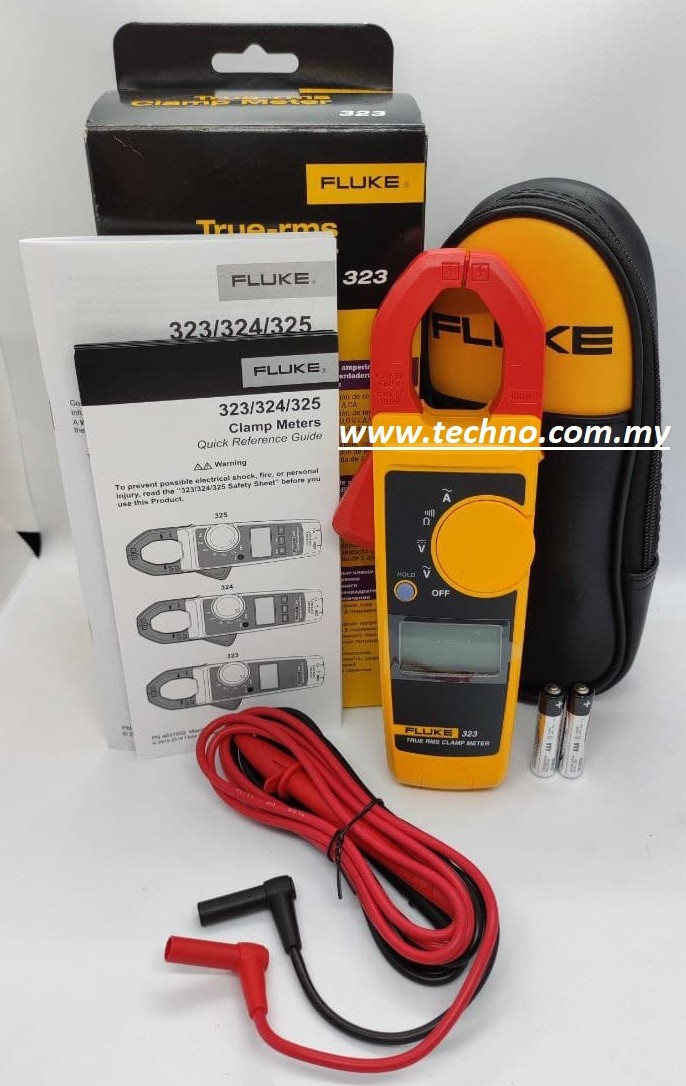

Fluke 323 AC True-rms Clamp Meters

  • Model: FK 323
  • Shipping Weight: 0.5kg
  • Manufactured by: FLUKE

RM1,240.00

Add to Cart:

Fluke 323 Features :

· 400 A ac current measurement

· 600 V ac and dc voltage measurement

· True-rms ac voltage and current for accurate measurements on non-linear signals

· Resistance measurement up to 40 k? with continuity detection

· Slim, ergonomic design

· CAT IV 300V/CAT III 600 V safety rating

· Hold button

· Two-year warranty

· Soft carrying case





Fluke 323 Specification :



323

324

325

AC current

Range

400.0 A

40.00 A/400.0 A

40.00 A/400.0 A

Accuracy

2 % ± 5 digits
(45 Hz to 65 Hz)
2.5 % ± 5 digits
(65 Hz to 400 Hz)

1.5 % ± 5 digits
(45 Hz to 400 Hz)
Note: Add 2 % for
position sensitivity

2 % ± 5 digits
(45 Hz to 65 Hz)
2.5 % ± 5 digits
(65 Hz to 400 Hz)

DC current

Range

-

-

40.00 A/400.0 A

Accuracy

-

-

2 % ± 5 digits

AC voltage

Range

600.0 V

600.0 V

600.0 V

Accuracy

1.5 % ± 5 digits

1.5 % ± 5 digits

1.5 % ± 5 digits

DC voltage

Range

600.0 V

600.0 V

600.0 V

Accuracy

1.0 % ± 5 digits

1.0 % ± 5 digits

1.0 % ± 5 digits

Resistance

Range

400.0 ?/ 4000 ?

400.0 ?/ 4000 ?

400.0 ?/ 4000 ?/ 40.00 k?

Accuracy

1.0 % ± 5 digits

1.0 % ± 5 digits

1.0 % ± 5 digits

Continuity

≤ 70 ?

≤ 30 ?

≤ 30 ?

Capacitance

-

100.0 μF to 1000 μF

100.0 μF to 1000 μF

Frequency

-

-

5.0 Hz to 500.0 Hz

AC response

True-rms

True-rms

True-rms

Backlight
