Model : Fluke 116

The Fluke 116 digital multimeter delivers the capabilities professionals demand to troubleshoot and repair HVAC (heating, ventilation and air conditioning) systems. It has everything you need in an HVAC meter, including temperature and microamp measurements to help you quickly troubleshoot problems with HVAC equipment and flame sensors.



The Fluke 116 comes with the Fluke 80BK-A integrated DMM temperature probe. The microamp function allows flame sensor measurement down to 0.1 microamps. The AutoV/LoZ function prevents false readings caused by ghost voltage. The Fluke 116 also has a large white LED backlight for work in poorly lit areas. It measures resistance, continuity, frequency, and capacitance and provides Min/Max/Average readings with elapsed time to record signal fluctuations.

Fluke 116 multimeters are independently tested for safe use in CAT III 600V environments.



And check out other members of the Fluke 110 family: the Fluke 113 Utility Multimeter, the Fluke 114 Electrical Multimeter, the Fluke 115 Multimeter and the Fluke 117 Commercial Electrician’s Multimeter.



Features and benefits of the Fluke 116

• Built-in thermometer for HVAC applications
• Microamps to test flame sensors
• Low input impedance: helps prevent false readings due to ghost voltage
• Large white LED backlight to work in poorly lit areas
• Resistance, continuity, frequency and capacitance
• Min/Max/Average with elapsed time to record signal fluctuations
• Compact ergonomic design for one-handed operation
• Compatible with optional magnetic hanger (ToolPak™)
• CAT III 600 V safety rated



Specifications
Maximum voltage between any terminal and earth ground	600 V
Surge protection	6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Display	Digital:  6,000 counts, updates 4 per second
Bar graph	33 segments, updates 32 per second
Operating Temperature	-10 °C to + 50 °C
Storage Temperature	-40 °C to + 60 °C
Battery type	9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery Life	400 hours typical, without backlight

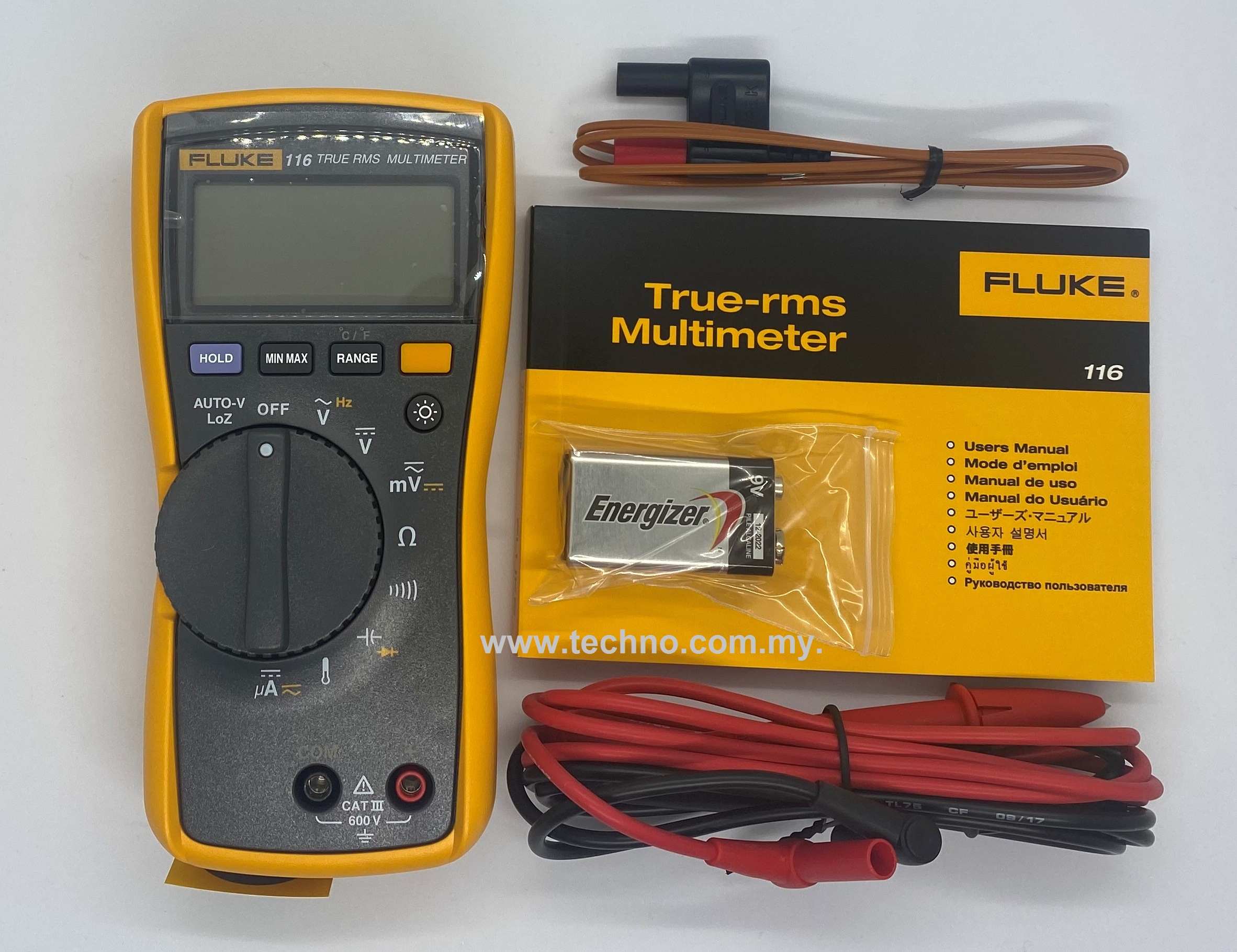

Fluke 116 include:

*4 mm silicone test lead set

*80BK Integrated Temperature probe

*Holster

*Installed 9 V battery

*User manua

Made in China
