Ready Stock !!!

Model : Fluke 175

The Fluke 175 True-rms digital multimeter has the features needed to find most electrical, electronic, electro-mechanical and heating and ventilation problems.  Simple to use with significant improvements like True-rms, frequency, capacitance and min-max record.



Electrical safety
All inputs are protected to measurement CAT III 1000  V and CAT IV 600V.  This meter can withstand transient impulses in excess of 8000 V to help protect you from arc blasts resulting from surges and spikes.

Features and benefits of the Fluke 175

• True RMS voltage and current measurements
• 6000 count resolution
• Manual and automatic ranging
• Display Hold and Auto Hold
• Frequency and capacitance measurements
• Resistance, continuity and diode measurements
• Min-max-average recording
• Smoothing mode allows filtering of rapidly changing inputs
• Easy battery exchange without opening the case
• Closed case calibration through front panel
• Ergonomic case with integrated protective holster
• EN61010-1 CAT III 1000V / CAT IV 600V
• Measures twice as fast as other multimeters

Specifications
Voltage DC	Accuracy* ± (0.15%+2) Max. Resolution 0.1 mV Maximum 1000 V
Voltage AC	Accuracy* ± (1.0%+3) Max. Resolution 0.1 mV Maximum 1000 V
Current DC	Accuracy* ± (1.0%+3) Max. Resolution 0.01 mA Maximum 10 A
Current AC	Accuracy* ± (1.5%+3) Max. Resolution 0.01 mA Maximum 10 A
Resistance	Accuracy* ± (0.9%+1) Max. Resolution 0.1 Ω Maximum 50 MΩ
Capacitance	Accuracy* ± (1.2%+2) Max. Resolution 1 nF Maximum 10,000 µF
Frequency	Accuracy* ± (0.1%+1) Max. Resolution 0.01 Hz Maximum 100 kHz
Note	* Accuracies are best accuracies for each function



Environmental Specifications
Operating temperature	-10°C to +50°C
Storage temperature	-30°C to +60°C
Humidity (Without Condensation)	0% - 90% (0°C - 35°C)   0% - 70% (35°C -50°C)



Safety Specifications
Overvoltage category	EN 61010-1 to 1000 V CAT III.   EN 61010-1 to 600 V CAT IV.
Agency Approvals	UL, CSA, TÜV listed and VDE Pending



Mechanical & General Specifications
Size	43 x 90 x 185 mm
Weight	420 g
Warranty	Lifetime
Battery life	Alkaline: ~200 hours typical, without backlight

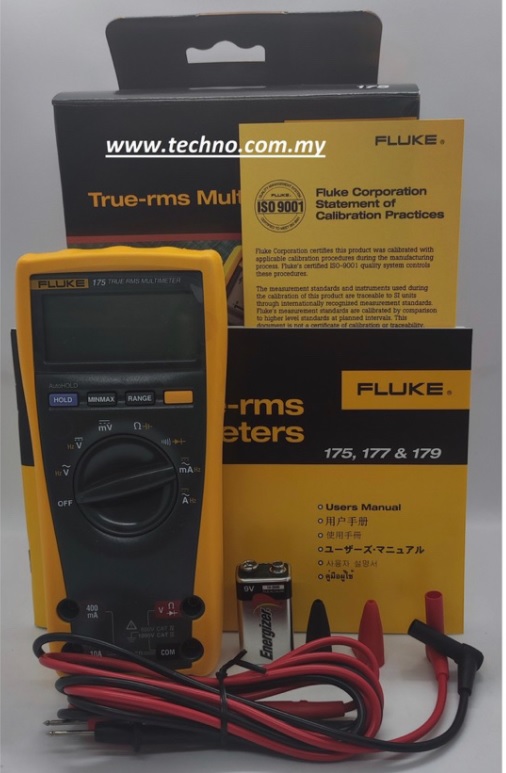

Fluke 175 include:

*Installed 9V battery

*TL75 Test leads

*Users manual

Made in USA
