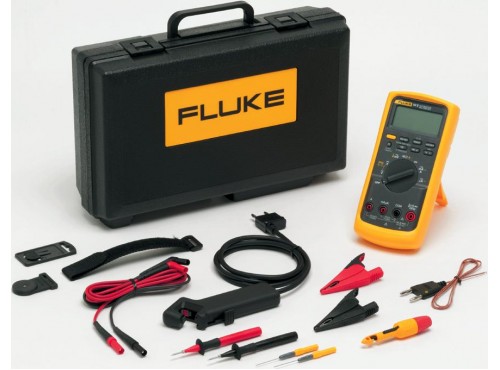

The Fluke 88V has improved measurement functions, trouble-shooting features and accuracy to solve more problems on conventional and hybrid vehicles. The 88V is the most powerful automotive multimeter ever offered by Fluke. In addition to having all standard multimeter features like the ability to measure voltage, current, continuity, and resistance, the 88V can perform diode test and pulse width measurements.
This meter can take current measurements up to 20A for 30 seconds and 10A continuously. The optional magnetic hanger lets you attach the meter to most steel surfaces for easy set-up and viewing. The 88V is designed to be used in high energy environments like those found on hybrid vehicles.
Features and benefits of the Fluke 88V series
- 0.1 % dc accuracy
- Current measurements up to 10 A, 20 A for up to 30 seconds
- Millisecond pulse width measurements for fuel injectors
- Optional magnetic hanger allows meter to attach to the vehicle and free your hands for other tasks
- Min/Max/Average recording with Min/Max Alert to capture variations automatically
- Peak Min/Max to record transients as fast as 250 μs
- Relative mode to remove test lead resistance from low ohms measurements
- Auto and manual ranging for maximum flexibility
- Autohold™ to capture stable readings with only one touch of the leads
- Large display digits and two-level bright white backlight for increased visibility
- Analog bargraph to track changing or unstable signals
- Input Alert provides audible warning against wrong use of input jacks
- Access door for fast battery changes without opening up the case
- “Classic” design that fits your hand with new removable holster, built-in test lead and probe storage
- 10 meg ohm input impedance won’t damage computer circuits
- Resistance, continuity and diode test
- Millisecond pulse width measurements for fuel injectors
- Frequency to 200 kHz and % duty cycle
- Measure up to 1000 V ac and dc
- Measure current up to 10 A, 20 A for up to 30 seconds
- 4 ½ digits for precise measurements
- RPM measurements with optional inductive pickup
- Temperature measurements with optional temperature probe
|
| Technical Specifications |
| DCV | | Maximum Voltage: | 1000V | | Accuracy: | Fluke 88 V: ±(0.1%+1) | | Best Resolution: | Fluke 88 V: 0.01 mV | |
| ACV | | Maximum Voltage: | 1000V | | Accuracy: | Fluke 88 V: ±(0.5%+2) | | AC Bandwidth: | Fluke 88 V: 5kHz | | Best Resolution: | 0.01 mV | |
| DC Current | | Maximum Amps: | 10A | | Amps Accuracy: | Fluke 88 V: ±(0.4%+2) | | Best Resolution: | Fluke 88 V: 0.001 mA | |
| AC Current | | Maximum Amps: | 10A | | Amps Accuracy: | Fluke 88 V: ±(1.2%+2) | | Best Resolution: | 0.001 mA | |
| Resistance | | Maximum Resistance: | 50 MΩ | | Accuracy: | Fluke 88 V: ±(0.4%+1) | | Best Resolution: | 0.1Ω | |
| Capacitance | | Maximum Capacitance: | 9,999 µF | | Accuracy: | ±(1%+2) | | Best Resolution: | 0.01 nF | |
| Frequency | | Maximum Frequency: | 200 KHz | | Accuracy: | ±(0.005%+1) | | Best Resolution: | 0.01 Hz | |
| Duty Cycle | | Maximum Duty Cycle: | 99.9 % | | Accuracy: | within 2% per KHz +0.1% | | Best Resolution: | 0.1 % | |
| Temperature Measurement | | | -200.0°C - 1090°C | | | -328.0°F - 1994.0°F, 1.0% excluding probe | |
| 80 BK Temperature Probe | | | -40 °C - 260 °C | | | -40 °F - 500 °F, 2.2 °C or 2% whichever is greater | |
| Conductance | | Maximum Conductance: | 60.00 nS | | Accuracy: | ±(1.0%+10) | | Maximum Resolution: | 0.01 nS | |
| Operating Range | | Operating Temperature: | -20 °C - 55 °C | | Storage Temperature: | -40 °C - 60 °C | |
| Physical | | | 5.2 cm x 9.8cm x 20.1 cm (2.06” x 3.86” x 7.93”) | | | 624 g (22 oz.) | |
