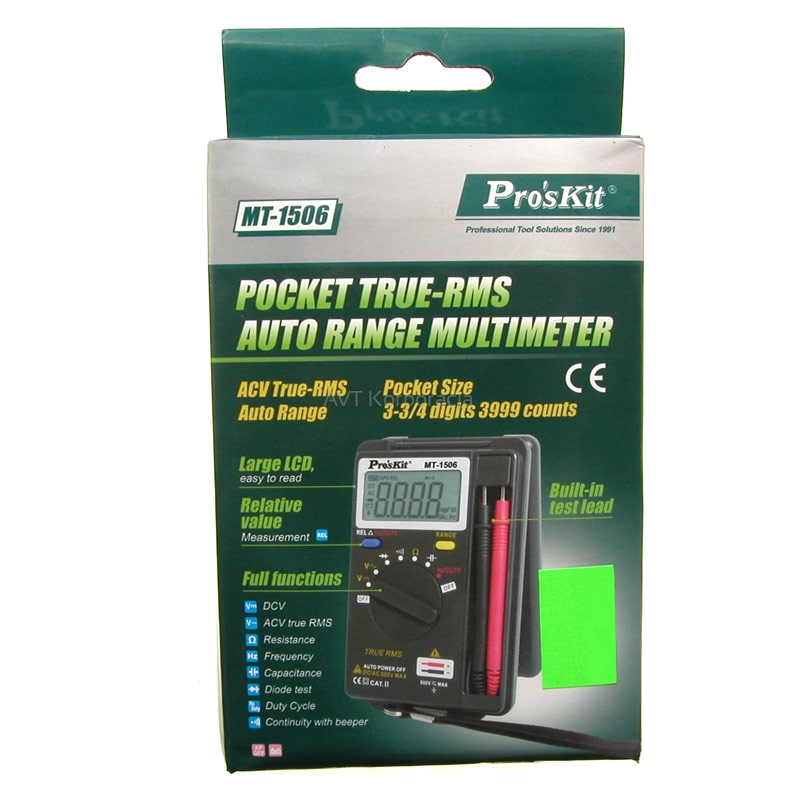

PROSKIT MT-1506 POCKET TRUE-RMS AUTO RANGE MULTIMETER

  • Model: MT-1506
  • Shipping Weight: 0.5kg
  • Manufactured by: PRO'SKIT

RM117.80

Add to Cart:

Model : PROSKIT MT-1506 POCKET TRUE-RMS AUTO RANGE MULTIMETER

PROSKIT MT-1506 POCKET TRUE-RMS AUTO RANGE MULTIMETER

  • Comply with CE EN61010-1 CATII 600V Safety rated
  • 3-3/4 digits 3999 counts
  • 0.5% best accuracy
  • Both auto and manual range provide accurate measurement
  • ACV True RMS measurement
  • Overload protection circuit design
  • Auto power off for energy saving
  • Pocket size design for easy carrying
  • Now Built-in test lead
  • Extra function: Continuity with beeper, Hz/Duty, Auto
  • power off, low batter indication
Specifications MT-1506
DCV 400mV,4/40/400V ±(0.5%+4d), 600V ±(1%+4d)
ACV 400mV±(1.5%+6d),
4/40/400V ±(0.8%+6d), 600V ±(1.0%+6d)
Resistance 400? ±(0.8%+5d)
4k/40k/400k/4M? ±(0.8%+4d), 40M? ±(1.2%+5d)
Frequency 100/1000Hz/10k/100k/1MHz/10MHz ±(0.5%+4d)
Capacitance 4nF ±(5%+40d),
40n/400n/4µ/40µ ±(3.5%+8d),
2000µF ±(5%+8d)
Duty cycle 0.1~99.9% ±(0.5%+4d)
Continuity with beeper 50 ±30?
Diode test Range: 0 ~ 1.5V Resolution: 1mV
Power source 2 x 1.5V AAA battery (Not included)
Size 4.9 x 3.1 x 0.8"
Individual packing Color box

This product was added to our catalog on Thursday 27 June, 2019.
